Description
A500plus series Continuous Inkjet Printer
A500plus series continuous small character inkjet printer is designed for high quality printing and improving production line effectively.
Its print head adopts Independent structure design.and the stainless steel chassis,which can maintain reliable operation in harsh production environment as well as improve the production line effectively.

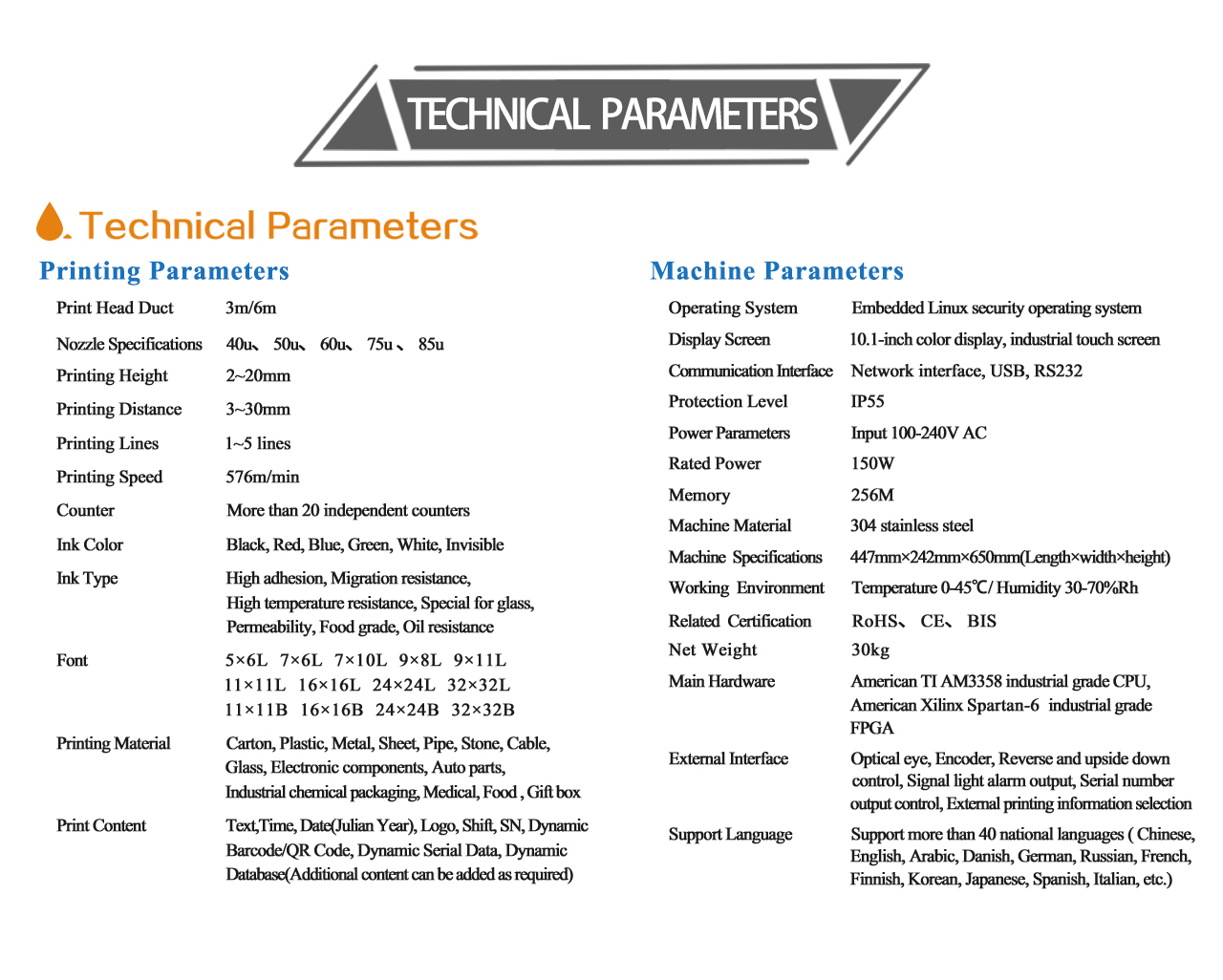

Technical Parameters Printing Parameters
Print Head Duct：3m/6m
Nozzle Specifications：40u、50u、60u、75u、85u
Printing Height：2~20mm
Printing Distance：3~30mm
Printing Lines：1~5 lines 576m/min
Printing Speed Counter：More than 20 independent counters
Ink Color：Black,Red,Blue,Green,White, Invisible
Ink Type：High adhesion,Migration resistance, High temperature resistance, Special for glass, Permeability, Food grade, Oil resistance

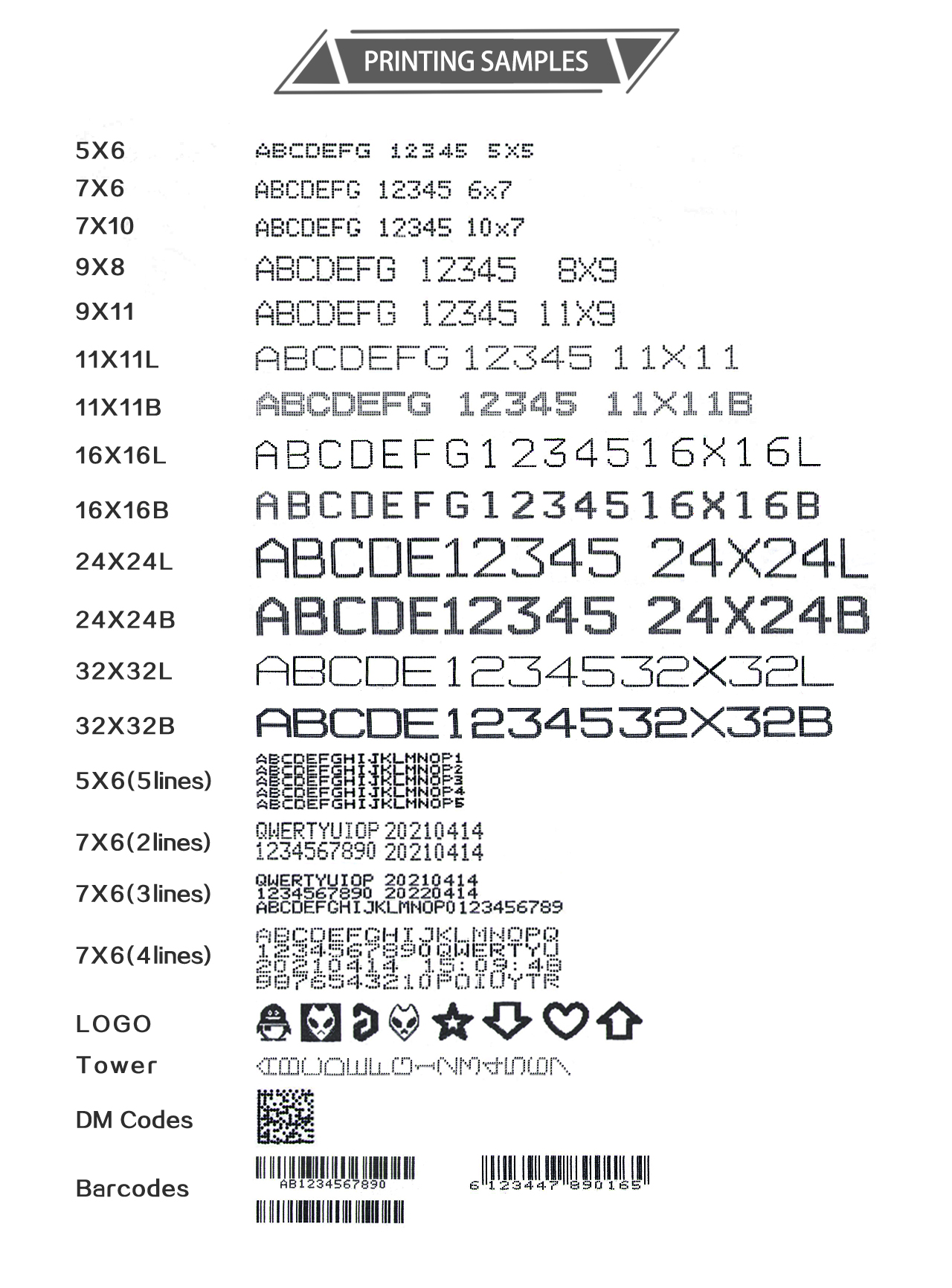

Font：5×6L 7×6L 7×10L 9×8L 9×11L 11×11L 16×16L 24×24L 32×32L 11×11B 16×16B 24×24B 32×32B
Printing Material：Carton,Plastic, Metal, Sheet, Pipe, Stone,Cable, Glass, Electronic components, Auto parts,
Industrial chemical packaging, Medical, Food,,Gift box
Print Content：Text Time,Date(Julian Year),Logo,Shift, SN,Dynamic Barcode/QR Code,Dynamic Serial Data, Dynamic Database(Additional content can be added as required
Machine Parameters
Operating System：Embedded Linux security operating system
Display Screen：10.1-inch color display, industrial touch screen
Communication Interface ：Network interface,USB,RS232
Protection Level：IP55
Power Parameters：Input 100-240V AC
Rated Power：150W
Memory： 256M
Machine Material：304 stainless steel

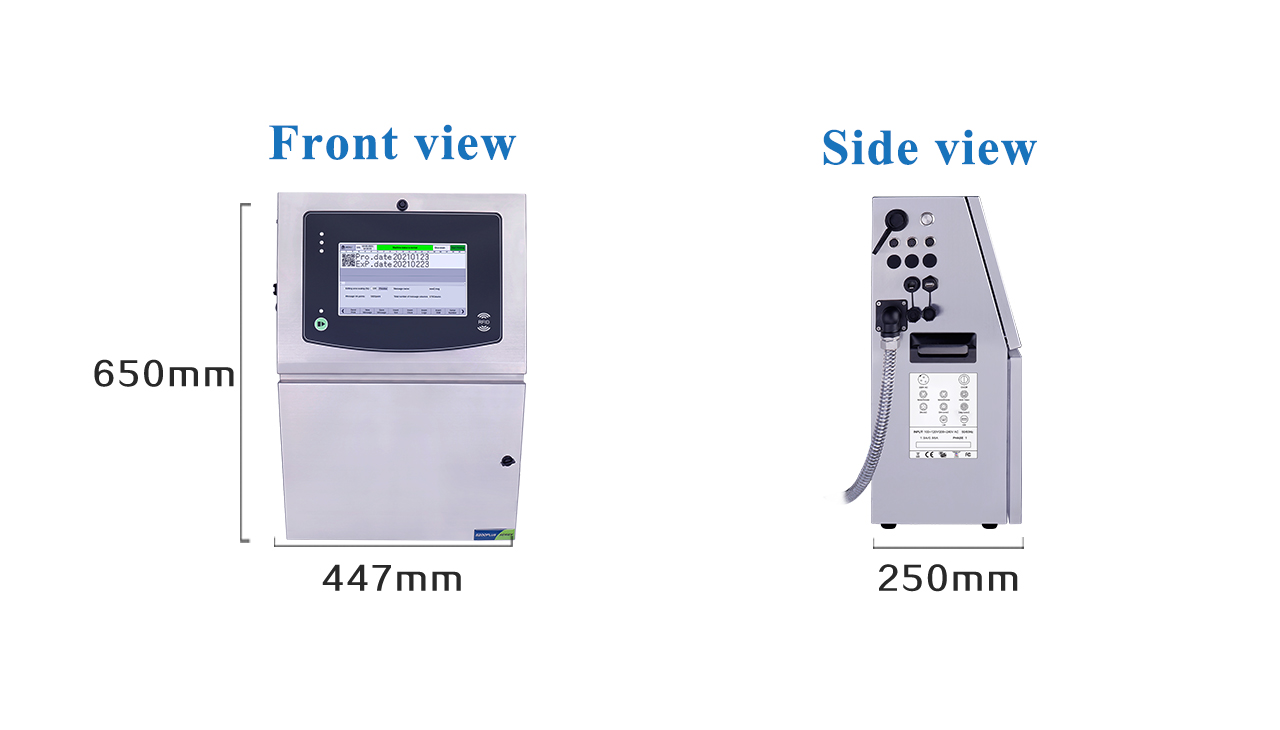

Machine Specifications： 447mm×242mm×650mm(Length×width×height)
Working Environment： Temperature 0-45℃/Humidity 30-70%Rh
Related Certification：ROHS、CE、BIS
Net Weight ：30kg
Main Hardware：American TIAM3358 industrial grade CPU, American Xilinx Spartan-6 industrial grade FPGA

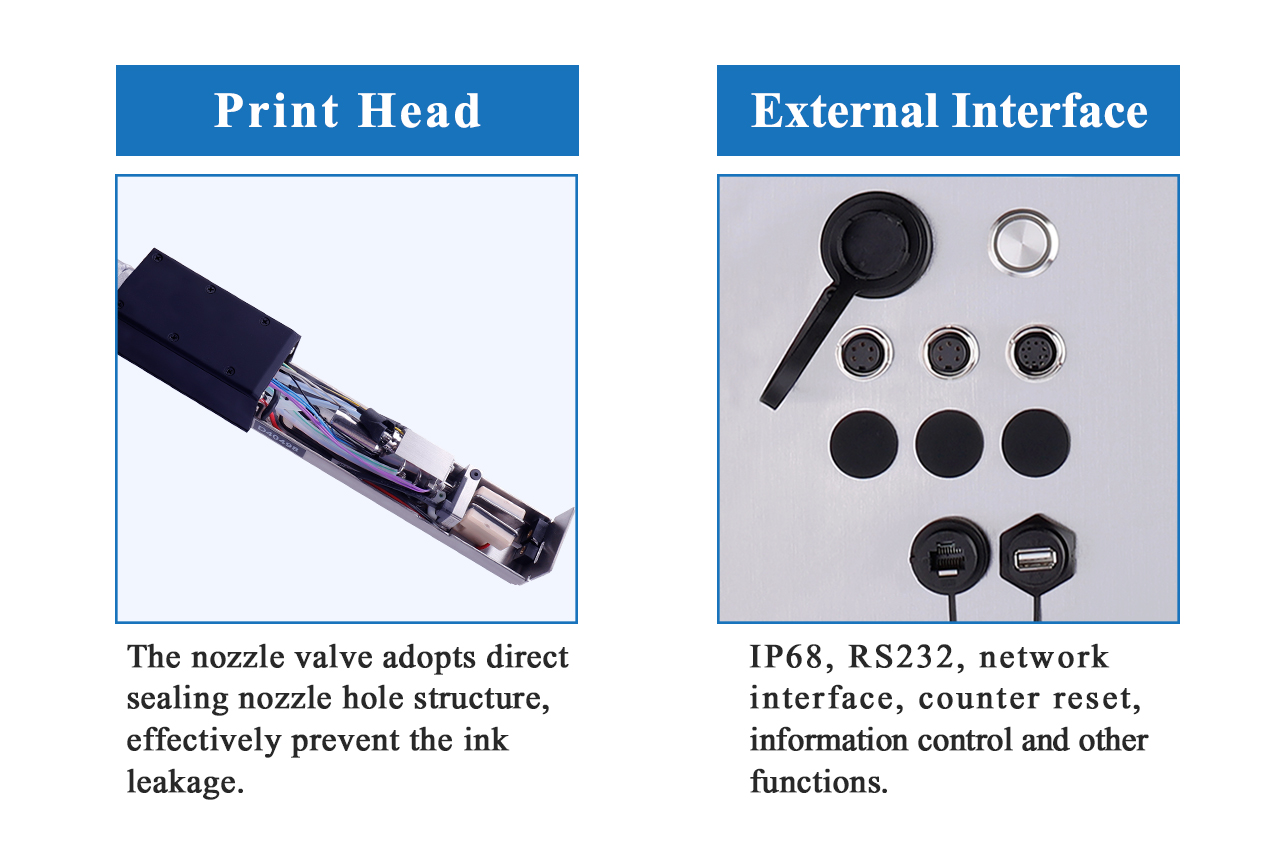

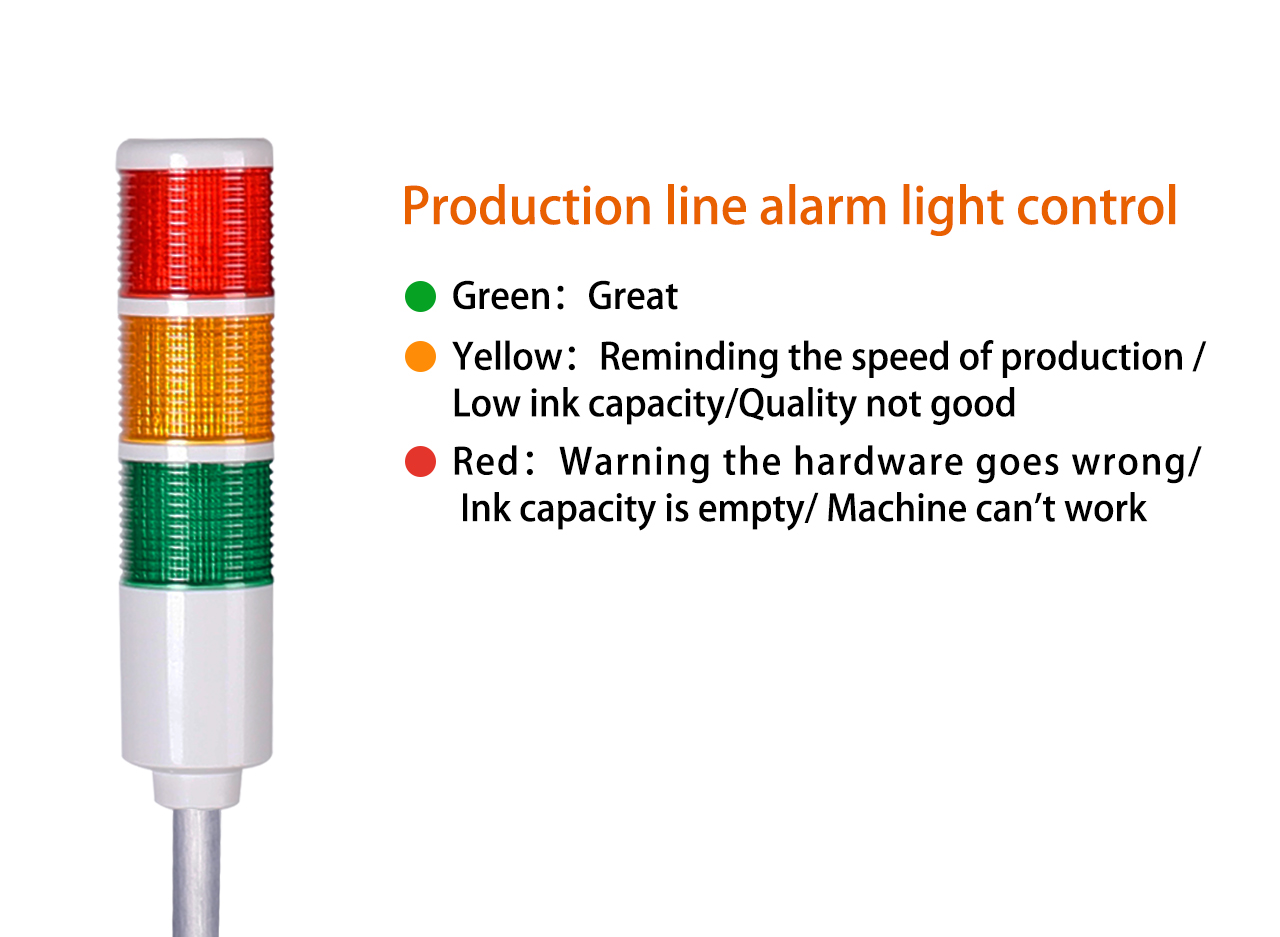

External Interface：Optical eye, Encoder,Reverse and upside down control, Signal light alarm output, Serial number output control, Extemal printing information selection
A500plus series continuous small character inkjet printer is designed for high quality printing and improving production line effectively.
Its print head adopts Independent structure design.and the stainless steel chassis,which can maintain reliable operation in harsh production environment as well as improve the production line effectively.
Technical Parameters Printing Parameters
Print Head Duct：3m/6m
Nozzle Specifications：40u、50u、60u、75u、85u
Printing Height：2~20mm
Printing Distance：3~30mm
Printing Lines：1~5 lines 576m/min
Printing Speed Counter：More than 20 independent counters
Ink Color：Black,Red,Blue,Green,White, Invisible
Ink Type：High adhesion,Migration resistance, High temperature resistance, Special for glass, Permeability, Food grade, Oil resistance
Font：5×6L 7×6L 7×10L 9×8L 9×11L 11×11L 16×16L 24×24L 32×32L 11×11B 16×16B 24×24B 32×32B
Printing Material：Carton,Plastic, Metal, Sheet, Pipe, Stone,Cable, Glass, Electronic components, Auto parts,
Industrial chemical packaging, Medical, Food,,Gift box
Print Content：Text Time,Date(Julian Year),Logo,Shift, SN,Dynamic Barcode/QR Code,Dynamic Serial Data, Dynamic Database(Additional content can be added as required
Machine Parameters
Operating System：Embedded Linux security operating system
Display Screen：10.1-inch color display, industrial touch screen
Communication Interface ：Network interface,USB,RS232
Protection Level：IP55
Power Parameters：Input 100-240V AC
Rated Power：150W
Memory： 256M
Machine Material：304 stainless steel
Machine Specifications： 447mm×242mm×650mm(Length×width×height)
Working Environment： Temperature 0-45℃/Humidity 30-70%Rh
Related Certification：ROHS、CE、BIS
Net Weight ：30kg
Main Hardware：American TIAM3358 industrial grade CPU, American Xilinx Spartan-6 industrial grade FPGA
External Interface：Optical eye, Encoder,Reverse and upside down control, Signal light alarm output, Serial number output control, Extemal printing information selection
Support Language：Support more than40 natio
